Description

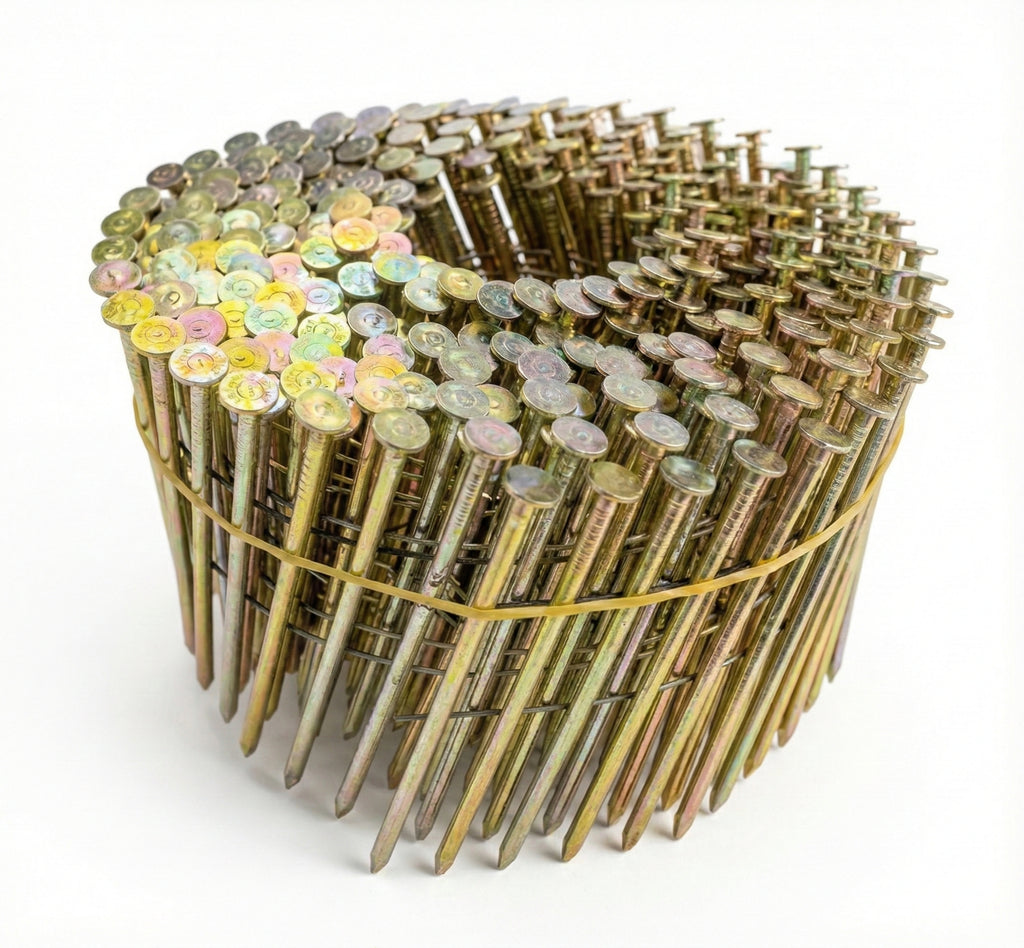

64mm Wire-Collated Coil Nails
Professional-Grade 15° Ring Shank Fasteners for Demanding Construction Applications
Specification
64mm x 2.87mm
15° Wire-Weld Collation
Compatibility
All 15° Coil Nailers
Pneumatic and Cordless Gas Platforms
Engineering Excellence
Precision-manufactured to exacting tolerances, these 64mm wire-collated coil nails represent the pinnacle of fastener engineering for professional tradespeople. Each nail features a galvanised ring shank design that delivers exceptional withdrawal resistance — up to 40% greater holding power than smooth shank alternatives — making them indispensable for structural applications where joint integrity is non-negotiable.
The 15-degree wire-weld collation ensures flawless feeding through pneumatic coil nailers, eliminating jams and misfires that compromise productivity on site. Hot-dip galvanisation provides superior corrosion resistance, extending service life in exterior applications and treated timber installations where moisture exposure is inevitable.
Technical Advantages
Ring Shank Geometry
Annular threading creates a mechanical interlock with timber fibres, preventing nail withdrawal under dynamic loads and seasonal timber movement.
Wire-Weld Collation
Precision-welded wire strips ensure consistent nail orientation and reliable magazine feeding at high fire rates up to 8 nails per second.
Galvanised Coating
Hot-dip zinc coating exceeds BS EN 10244-2 standards, delivering a minimum 600-hour salt spray resistance for exterior joinery and treated timber.
Chisel Point Design
Diamond-ground point geometry reduces splitting in hardwoods and engineered timber products whilst maintaining straight, consistent penetration.
Professional Applications
Structural Framing
Timber frame construction, stud walls, floor joists, roof trusses, and engineered I-beams.
Exterior Cladding
Shiplap boarding, feather-edge fencing, decking subframes, fascia and soffit installation.
Sheathing Systems
OSB and plywood roof decking, wall sheathing, flooring substrates, and bracing panels.
Joinery and Carpentry
Window frame installation, door lining fixings, staircase construction, and heavy-duty trim.
Pallet Manufacturing
Industrial pallet assembly, crate construction, packaging solutions, and logistics applications.
Fencing and Landscaping
Post and rail fencing, pergola construction, decking frames, and garden structures.
Specifications
| Nail Length | 64mm (2.5") |
| Shank Diameter | 2.87mm (11 gauge) |
| Collation Angle | 15° Wire-Weld |
| Shank Type | Ring Shank (Annular Thread) |
| Finish | Hot-Dip Galvanised |
| Point Style | Diamond Chisel Point |
| Material Standard | BS EN 10016-2 Wire Rod |
| Galvanisation Standard | BS EN 10244-2 (min. 600hr salt spray) |
| Compatible Nailers | All 15° Coil Nailers |
| Operating Pressure | 70 – 120 PSI (4.8 – 8.3 bar) |
| Recommended Compressor | Minimum 2.5 CFM at 90 PSI (continuous) |
| Barcode | AC015014875175010 |
Why Professionals Choose Ring Shank Nails
In professional construction environments where structural integrity and long-term performance are paramount, ring shank nails have become the fastener of choice. The annular threading along the shank creates a mechanical bond with timber fibres that resists withdrawal forces far more effectively than smooth shank alternatives.
Independent testing demonstrates that ring shank nails provide withdrawal resistance values 40–50% higher than equivalent smooth shank fasteners — a critical advantage in applications subject to wind loading, vibration, or seasonal timber movement. The galvanised coating ensures these performance characteristics are maintained throughout the service life of the structure, even in challenging exterior environments.
For contractors working to Building Regulations and structural engineering specifications, ring shank nails offer the assurance of code-compliant fastening with documented load-bearing performance.
Trade Professional Insight
"When you're framing a structure that needs to stand for decades, fastener selection isn't negotiable. These 64mm ring shank coils deliver the holding power and corrosion resistance that separates professional-grade work from compromise. The wire collation feeds flawlessly through our coil nailers, and we've never experienced a callback related to fastener failure. That's the kind of reliability that protects your reputation on site."
— Master Carpenter, 25+ Years Experience
Compatibility and Tool Requirements
These 64mm wire-collated nails are engineered for use with 15-degree coil nailers from all major manufacturers. The 15° collation angle is the industry standard for coil nailers, ensuring universal compatibility across pneumatic and cordless gas platforms.
Operating pressure: 70 – 120 PSI (4.8 – 8.3 bar) | Recommended compressor: Minimum 2.5 CFM at 90 PSI for continuous operation.
Professional-Grade Fasteners
Engineered for demanding construction applications where performance is non-negotiable.
Trusted by trade professionals across the UK for structural integrity and long-term reliability.
