Description
Safeflow Safety Range · Air Compressors UK

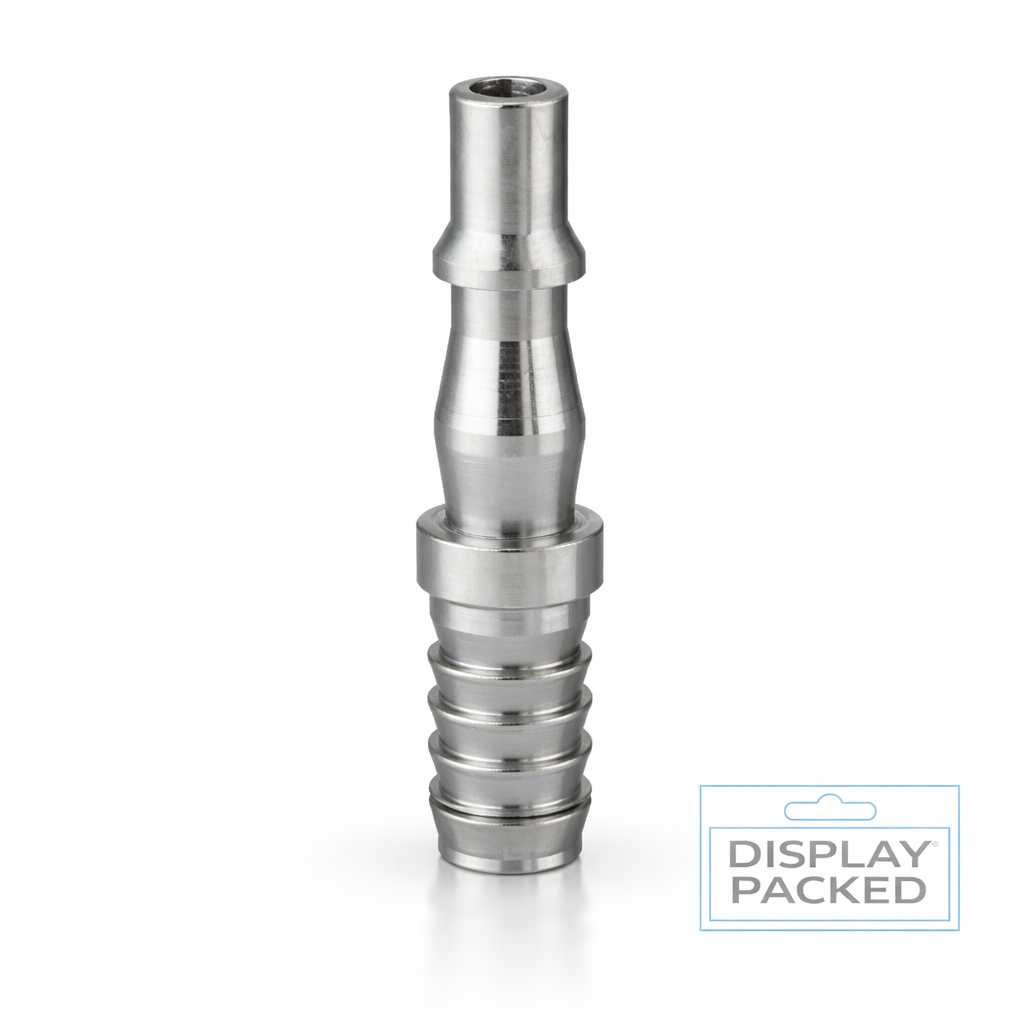

9.5mm (3/8") Hose Tailpiece
Air Line Adaptor
A precision-engineered steel hose tailpiece adaptor built for demanding compressed air environments. Ribbed grip design, 14 bar rated, display packed for trade and retail.
Product Overview
The 9.5mm (3/8") Hose Tailpiece Air Line Adaptor is a workshop-grade steel connector engineered to deliver a secure, leak-free interface between your air hose and pneumatic quick-connect system. The ribbed tailpiece profile bites firmly into the hose bore, resisting pull-out under pressure and vibration — critical in high-cycle workshop environments where connection integrity cannot be compromised.
Rated to 14 bar (200 psi) and capable of flowing 43 cfm at 100 psi, this adaptor handles everything from tyre inflation and blow guns to impact wrenches and spray guns without restriction. Its wide operating temperature range of -40°C to +100°C makes it equally at home in cold-store facilities and heated production lines.
Key Features
- Ribbed hose tailpiece for maximum grip and pull-out resistance
- High-strength steel construction for long service life
- 14 bar (200 psi) maximum working pressure
- 43 cfm flow rate at 100 psi — unrestricted airflow
- Wide temperature range: -40°C to +100°C
- 9.5mm (3/8") internal diameter hose compatibility
- 5mm nominal bore for consistent flow performance
- Display packed — retail and trade ready out of the box
Technical Specifications
| Coupling Style | Adaptor |
| Connection Type | Hose Tailpiece |
| Hose Size (I/D) | 9.5mm (3/8") |
| Nominal Bore | 5mm |
| Material | Steel |
| Max Working Pressure | 14 bar / 200 psi |
| Flow Rate | 43 cfm @ 100 psi |
| Temperature Range | -40°C to +100°C |
| Packaging | Display Packed |
| Barcode | AC015014875039152 |
| SKU | AC-HTA-9.5-38-STL |
Typical Applications
- Workshop air line systems
- Compressor outlet connections
- Pneumatic tool hookups
- Tyre inflation equipment
- Spray gun air supply lines
- Fleet & automotive service bays
- Industrial compressed air networks
- Retail display & trade counter sales
