Description
Professional Pneumatic Safety Equipment
Engineered for Safer Compressed Air Operations
In demanding workshop and industrial environments, uncontrolled hose movement is a genuine hazard. This anti-whip safety air hose is purpose-built to absorb the reactive forces generated between a compressed air tool and the main supply line — reducing vibration, limiting strain on connections, and critically, preventing the dangerous whipping action that can occur when a pressurised hose becomes disconnected or fails under load.
The Role It Plays

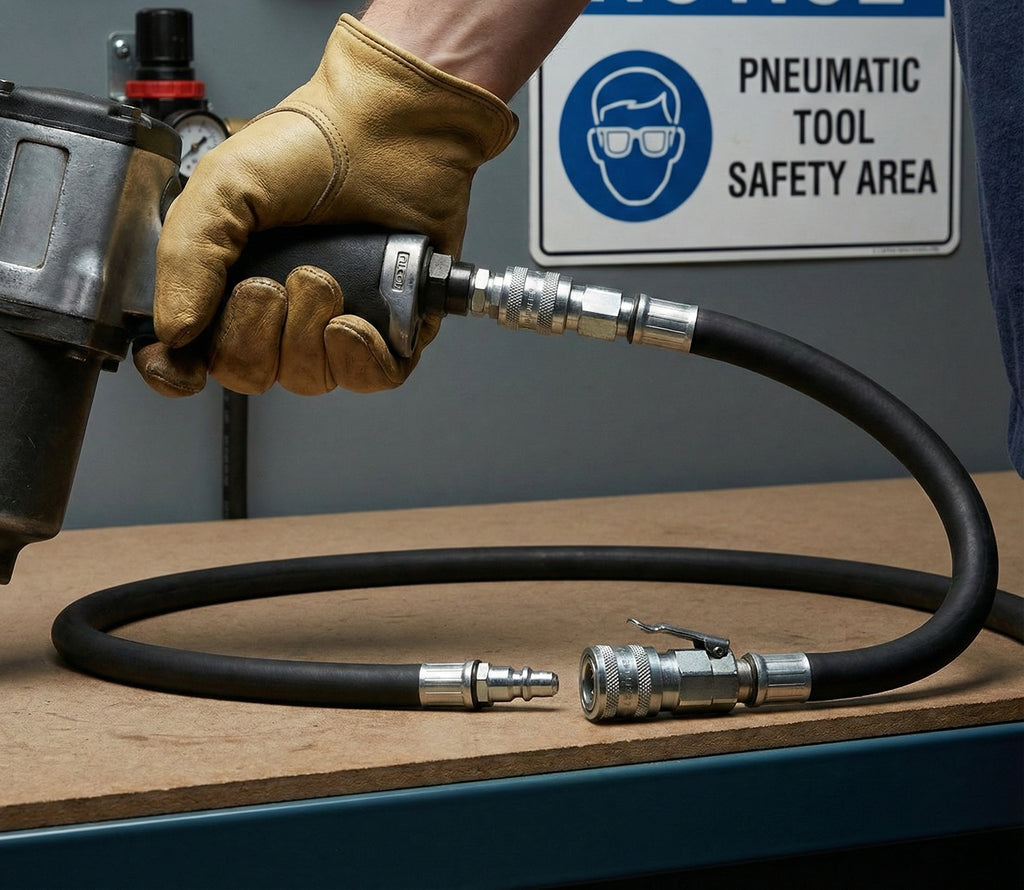

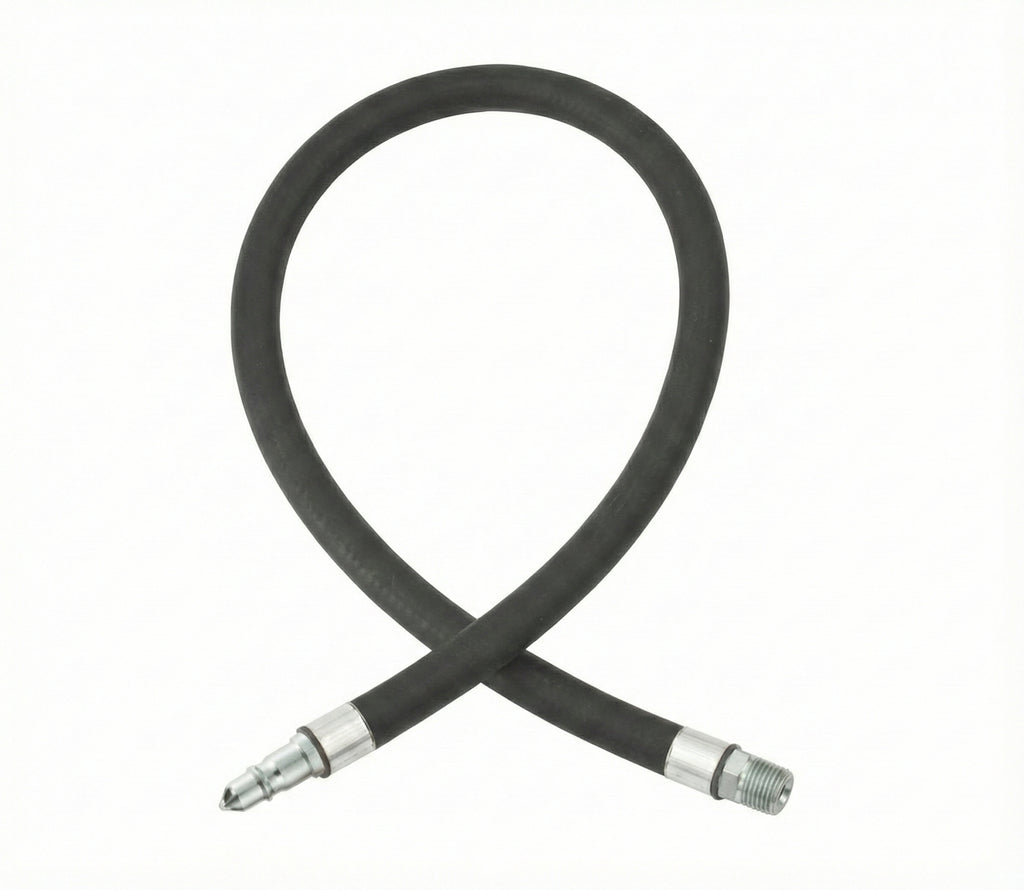

Positioned between the main air supply hose and the pneumatic tool, this compact 0.6m assembly acts as a controlled transition point. Its 13mm internal diameter maintains full, unrestricted airflow to high-demand tools — impact wrenches, air ratchets, grinders, and blow guns — while the robust 100 Series adaptor and 1/2" BSP male end fitting ensure a secure, leak-free connection at both ends. Rated to 21 bar working pressure with a burst threshold of 63 bar, it is built to perform reliably across the full range of professional compressed air applications.
Key Features
|
Anti-Whip Safety Design Absorbs reactive hose movement and prevents dangerous whipping in the event of a disconnection or pressure surge. |
13mm I.D. for Maximum Airflow The large bore internal diameter ensures unrestricted air delivery to high-consumption pneumatic tools without pressure drop. |
|
100 Series Adaptor Connection Compatible with the widely used 100 Series coupling system, ensuring straightforward integration into existing compressed air setups. |
1/2" BSP Male End Fitting Standard 1/2" male threaded fitting for direct connection to compatible air tools, regulators, and manifold ports. |
|
21 Bar Working Pressure Rated to 300 psi / 21 bar maximum working pressure, with a burst pressure of 63 bar — well within the demands of professional pneumatic systems. |
Compact 0.6m Length The short 0.6m format is ideal as a tool whip hose — close-coupled to the tool for maximum control and minimum trailing hose. |
Typical Applications
This hose assembly is suited to a broad range of professional environments where compressed air is used regularly and operator safety is a priority:
- Automotive workshops and service bays
- Fleet maintenance and commercial vehicle servicing
- Manufacturing and production line pneumatic systems
- Engineering workshops and fabrication facilities
- Tyre fitting centres and MOT bays
- General industrial compressed air installations
Technical Specifications
| Parameter | Value |
|---|---|
| Hose Length | 0.6m / 2ft |
| Internal Diameter (I.D.) | 13mm / 1/2" |
| External Diameter (O.D.) | 21mm |
| End Fittings | 100 Series Adaptor & 1/2" BSP Male |
| Maximum Working Pressure | 21 bar / 300 psi |
| Burst Pressure | 63 bar / 900 psi |
| Operating Temperature Range | -15°C to +60°C |
| Hose Colour | Black |
| Assembly Type | Anti-Whip Safety Hose Assembly |
| Barcode | AC015014875860534 |
Specification Confidence
Every assembly is built to consistent dimensional and pressure standards, with metal end fittings crimped and tested for secure, leak-free performance. Supplied ready to fit — no additional tools or preparation required. Dispatched from UK stock for fast, reliable delivery to workshops and facilities across Great Britain.
